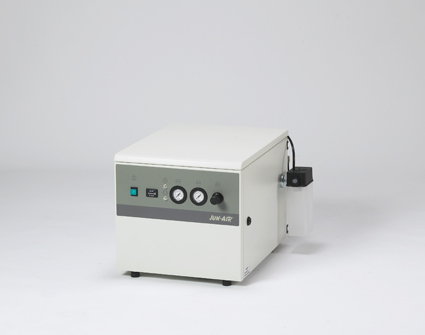

OF302-4M
Description
OF series oil-less rocking piston ideal for laboratory, medical, dental, gas generation, beverage dispensing, and other applications where noise and long life are key requirements. The JUN-AIR oil-less rocking piston compressors have few moving parts, which reduces noise, vibrations as well as wear and tear. The reduced noise and vibration level makes it possible to place the compressor directly at the place of use. The noise level is approx. 65 dB(A)
Distributor LookupSpecifications
Thermal Protection:
YES
Flow @ 60 Hz:
4.87 cfm
(
137.9 LPM
)
Flow @ Max Pressure - 50 Hz:
1.34 cfm
(
37.94 LPM
)
Flow @ Max Pressure - 60 Hz:
1.55 cfm
(
43.89 LPM
)
Max Pressure:
120 psig
(
8.27 bar
)
Power:
0.6 hp
(
0.45 kW
)
Weight:
99 lbs
(
44.91 kg
)
Duty Cycle:
100
Tank Size:
1.1 gal
(
4.16 L
)
Warranty:
2 Years
Thermal Protection:
YES
Flow @ 60 Hz:
4.87 cfm
(
137.9 LPM
)
Flow @ Max Pressure - 50 Hz:
1.34 cfm
(
37.94 LPM
)
Flow @ Max Pressure - 60 Hz:
1.55 cfm
(
43.89 LPM
)
Max Pressure:
120 psig
(
8.27 bar
)
Power:
0.6 hp
(
0.45 kW
)
Weight:
99 lbs
(
44.91 kg
)
Duty Cycle:
100
Tank Size:
1.1 gal
(
4.16 L
)
Warranty:
2 Years
