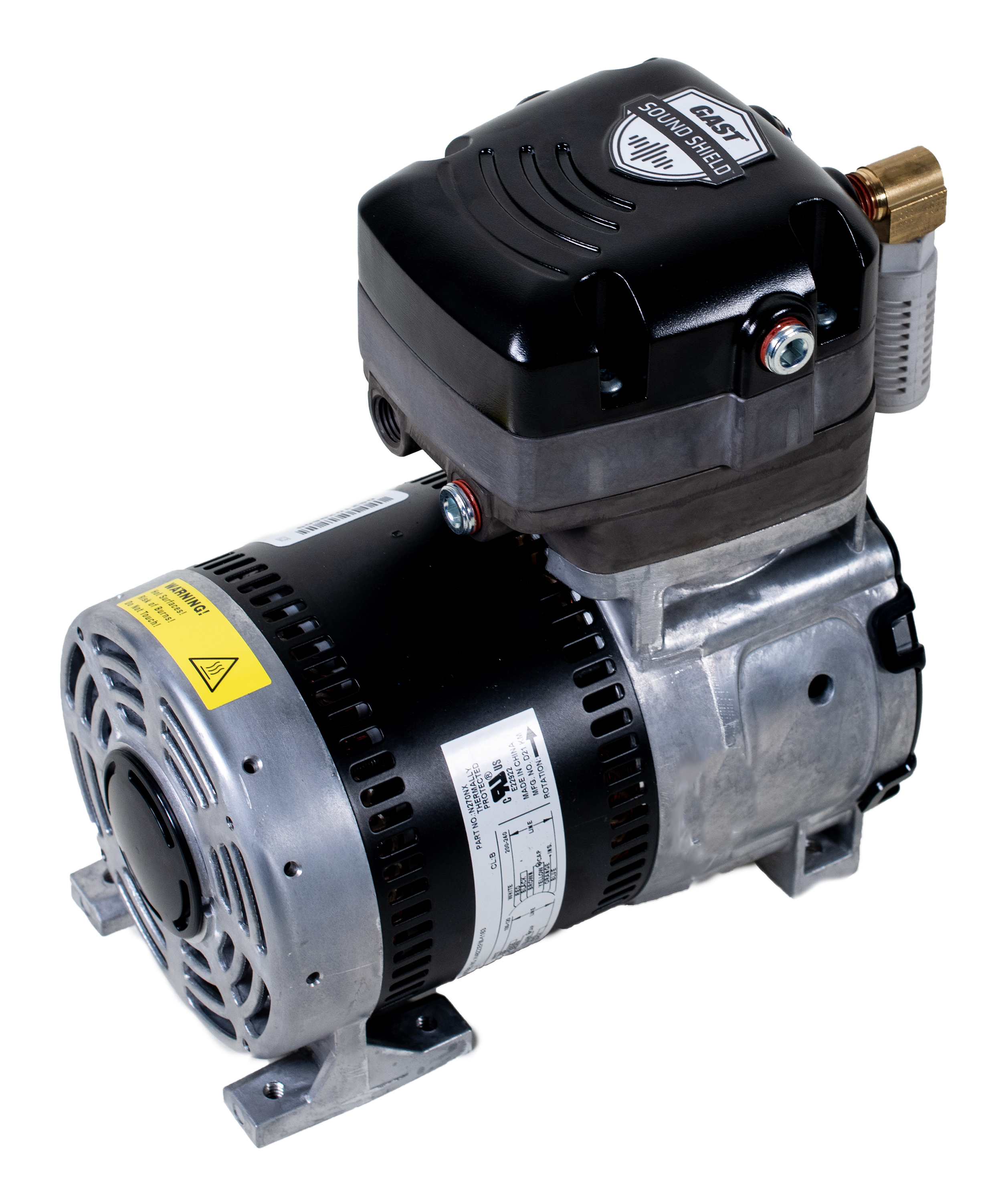

86R130-VS101-N270X
Other
SOUND SHIELD DEMO VIDEO
Sound Shield Installation Video

86R130-VS101-N270X

Description

The 86R with Sound Shield Technology takes Gast’s oil-less rocking piston compressors and vacuum pumps to a whole new level of quiet. This Sound Shield equipped model provides a 25% reduction in dB(A) and 38% reduction in sones versus the standard GAST model @ open flow. The result is a quieter, more pleasant working environment with the same outstanding performance, durability and flexibility of our 86R/87R family making them the ideal choice for a wide array of applications.

Specifications

Thermal Protection: YES
Operating Voltage: 100-120-200-240/50-60
Regulatory Approval: cURus, CE
Flow @ 60hz: 1.44 cfm
( 2.45 m3h )
Max Vacuum @ 60hz‎: 27.59 in-hg
( 934.31 mbar )
Max Sound Level: 56.4 dB(A)
Weight: 21.3 lbs
( 9.66 kg )
Duty Cycle: 100%
Warranty: 1 Year
Thermal Protection: YES
Operating Voltage: 100-120-200-240/50-60
Regulatory Approval: cURus, CE
Flow @ 60hz: 1.44 cfm
( 2.45 m3h )
Max Vacuum @ 60hz‎: 27.59 in-hg
( 934.31 mbar )
Max Sound Level: 56.4 dB(A)
Weight: 21.3 lbs
( 9.66 kg )
Duty Cycle: 100%
Warranty: 1 Year

Downloads

Gast Catalog
Technical Data Sheet
Operating & Maintenance Manual
SOUND SHIELD DEMO VIDEO
Sound Shield Installation Video

Series Options

Quiet

The patented crossover chamber design regulates and controls airflow to dampen sound and optimize performance.

Durable

This series has a full metal body and thicker cross-sections around the chamber perimeters, allowing for increased durability and longer life.

Performance

The flexible cup made from superior materials combined with twin seals for the intake and exhaust chambers allow for greater pressure capabilities.
