2x120R-90BQ6

Description

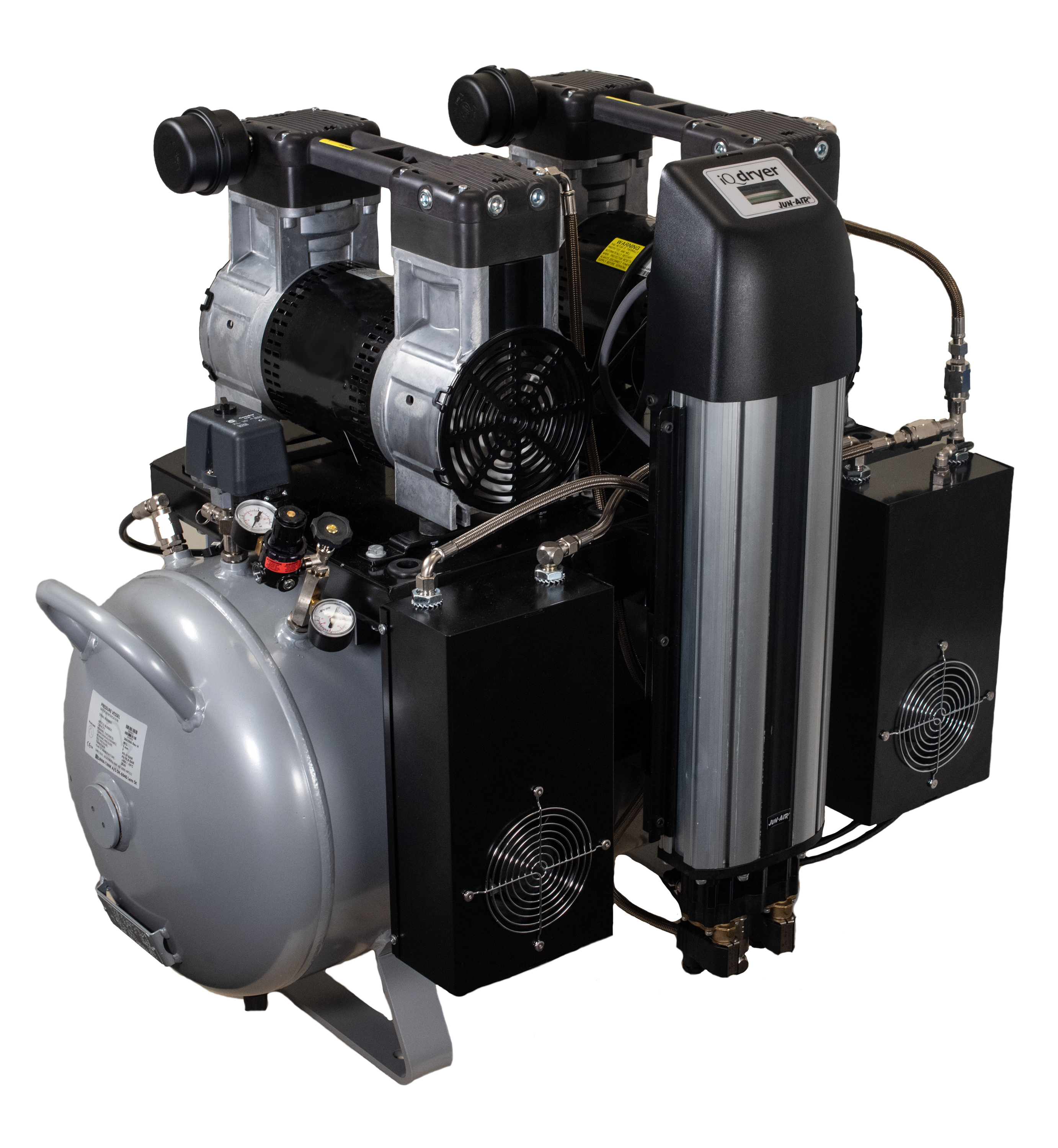

The 2x120R-90BQ6 replaces and improves upon the outgoing 2xOF1202-90BQ6.

120R = 120R 2HP Oil-less Rocking Piston Compressor
  90    = 90L Tank/Receiver
   B     = Jun-Air Basic System (Compressor is Uncovered)
   Q     = Includes Air Dryer

120R Series Oil-less Rocking Piston is ideal for global plug-n-play laboratory, medical, dental, gas generation, beverage dispensing, and other applications where noise and long life are key requirements. The GAST 120R Oil-less Rocking Piston Compressor inside of a Jun-Air System has few moving parts which reduces noise, vibrations, as well as wear and tear. The reduced noise and vibration level makes it possible to place the compressor directly at the place of use. Our Jun-Air Systems are rated for 100% continuous duty cycle and include a 2-year factory warranty.

Specifications

Thermal Protection: YES
ps_regulatory_approval: CE
Flow @ 60 Hz: 12 cfm
( 20.39 m3h )
Flow @ Max Pressure - 50 Hz: 6 cfm
( 10.19 m3h )
Flow @ Max Pressure - 60 Hz: 7 cfm
( 11.89 m3h )
Max Pressure: 120 psi
( 8.27 bar )
Power: 4 hp
( 2.98 kW )
Max Sound Level @ 50 Hz: 78 dB(A)
Max Sound Level @ 60 Hz: 80 dB(A)
Weight: 270 lbs
( 122.47 kg )
Duty Cycle: 100%
Tank Size: 90 liter
( 23.78 gal )
Dew Point: -40
Warranty: 2 year
Thermal Protection: YES
ps_regulatory_approval: CE
Flow @ 60 Hz: 12 cfm
( 20.39 m3h )
Flow @ Max Pressure - 50 Hz: 6 cfm
( 10.19 m3h )
Flow @ Max Pressure - 60 Hz: 7 cfm
( 11.89 m3h )
Max Pressure: 120 psi
( 8.27 bar )
Power: 4 hp
( 2.98 kW )
Max Sound Level @ 50 Hz: 78 dB(A)
Max Sound Level @ 60 Hz: 80 dB(A)
Weight: 270 lbs
( 122.47 kg )
Duty Cycle: 100%
Tank Size: 90 liter
( 23.78 gal )
Dew Point: -40
Warranty: 2 year

Downloads

Gast Catalog
Technical Data Sheet
Operating & Maintenance Manual
120R Preventative Maintenance and Service Kit Installation
Gast 120R Series 2 Horsepower Rocking Piston Air Compressor
Retrofit Gast 120R into the JUN-AIR OF1202 Cabinet System
120R Tank System Purge Adjustment Video
120R Systems Overview
iQ-Dryer Manual

Series Options

Sound

The oil-less JUN-AIR compressors are available in protective metal cabinets.  The cabinets reduce the sound emission from the already quiet compressor to a level that is approximately one quarter of the level of a basic compressor.

Long Life

Easy maintenance
