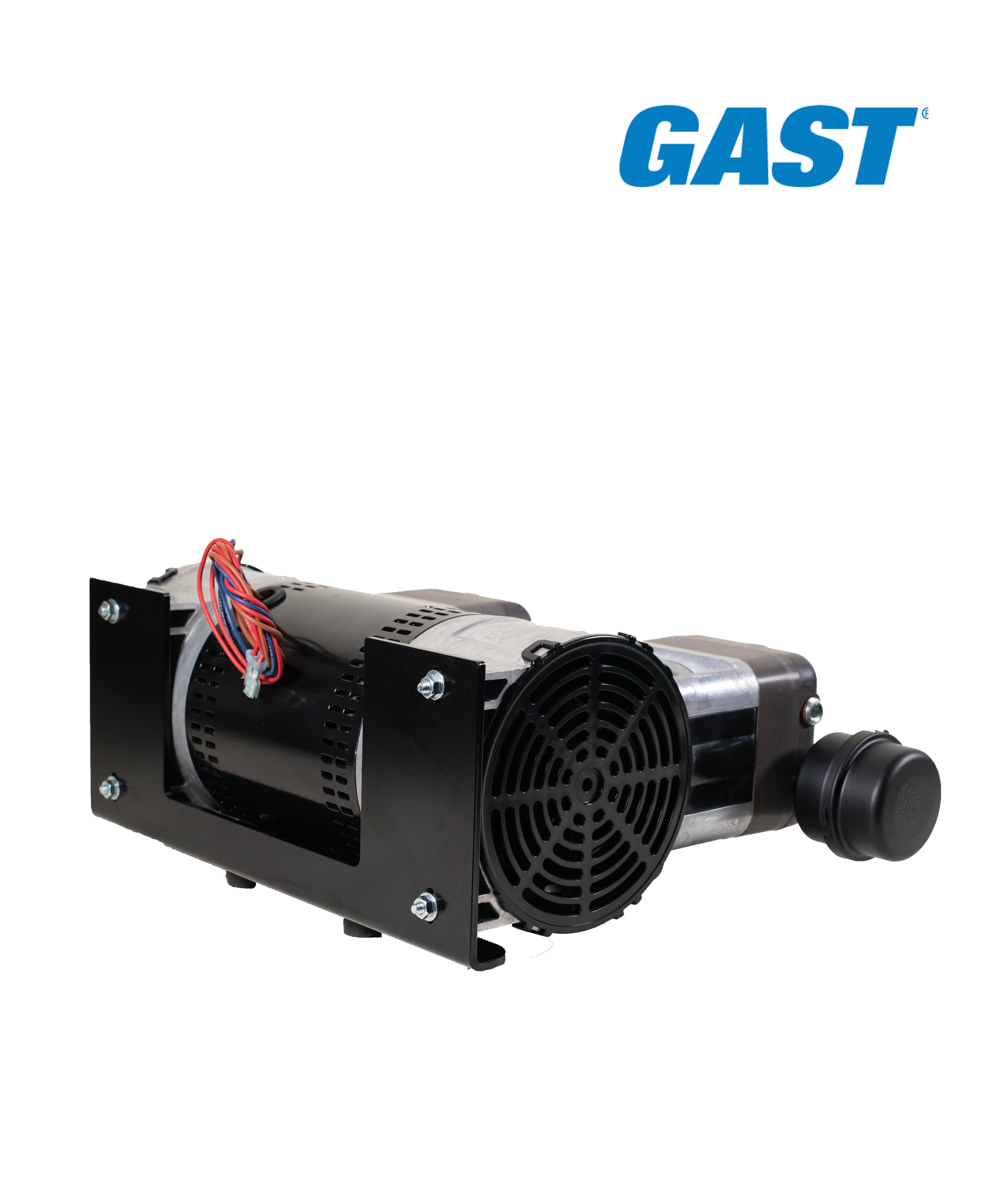

120R Side Mount K1032 vs Piston Comparison Flyer
120R Side Mount Installation
Gast 120R Capacitor Cover K1030 Installation
Off Grid Sell Sheet

120R689-P101-N800NX

Description

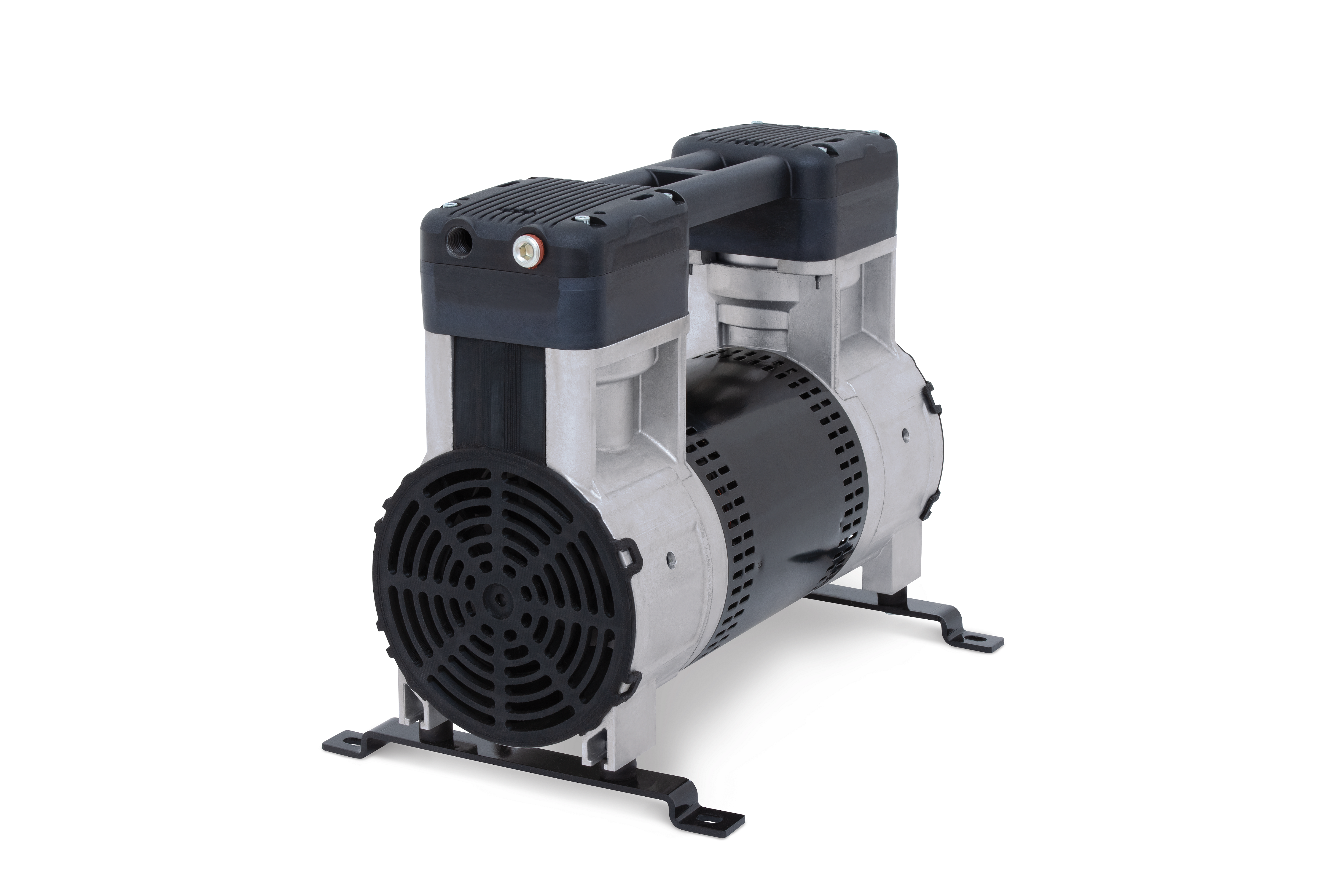

For OEMs seeking a quieter, more compact piston compressor that provides greater air flow with a lower amp draw, the new 120R Series rocking piston air compressor from Gast Manufacturing is a game-changing solution. At 2 HP, it's the most powerful rocking piston compressor with airflow capacity up to 12 cfm and pressure to 145 psi. This unmatched power in a smaller footprint allows OEMs to replace two or more smaller piston compressors with a single Gast 120R unit -- sending more air to their product while using less space and energy.

Specifications

Max Speed: 1725 rpm
Max Speed @ 50hz: 1425 rpm
Max Speed @ 60hz: 1750 rpm
Thermal Protection: YES
Operating Voltage: 200-230V 50Hz/200-230V 60 Hz
Regulatory Approval: UL, CE
Power Requirement: 2 HP
Power Rating: 2 hp
( 1.49 kW )
Power Rating @ 50hz: 2 hp
( 1.49 kW )
Power Rating @ 60hz: 2 hp
( 1.49 kW )
Flow‎ @ 50hz: 10 cfm
( 16.99 m3h )
Flow @ 60hz: 12 cfm
( 20.39 m3h )
Max Pressure: 145 psi
( 10 bar )
Max Pressure @ 50hz: 145 psi
( 10 bar )
Max Pressure @ 60hz: 145 psi
( 10 bar )
Max Vacuum @ 50hz: 28 in-hg
( 948.19 mbar )
Max Vacuum @ 60hz‎: 28 in-hg
( 948.19 mbar )
Amps Running @ 50hz: 8
Amps Running @ 60hz: 10
Max Sound Level: 75 dB(A)
Weight: 59 lbs
( 26.76 kg )
Duty Cycle: 100%
Warranty: 1 Year
Max Speed: 1725 rpm
Max Speed @ 50hz: 1425 rpm
Max Speed @ 60hz: 1750 rpm
Thermal Protection: YES
Operating Voltage: 200-230V 50Hz/200-230V 60 Hz
Regulatory Approval: UL, CE
Power Requirement: 2 HP
Power Rating: 2 hp
( 1.49 kW )
Power Rating @ 50hz: 2 hp
( 1.49 kW )
Power Rating @ 60hz: 2 hp
( 1.49 kW )
Flow‎ @ 50hz: 10 cfm
( 16.99 m3h )
Flow @ 60hz: 12 cfm
( 20.39 m3h )
Max Pressure: 145 psi
( 10 bar )
Max Pressure @ 50hz: 145 psi
( 10 bar )
Max Pressure @ 60hz: 145 psi
( 10 bar )
Max Vacuum @ 50hz: 28 in-hg
( 948.19 mbar )
Max Vacuum @ 60hz‎: 28 in-hg
( 948.19 mbar )
Amps Running @ 50hz: 8
Amps Running @ 60hz: 10
Max Sound Level: 75 dB(A)
Weight: 59 lbs
( 26.76 kg )
Duty Cycle: 100%
Warranty: 1 Year
