Model Family
Model 3L-4L-5L-5H-6L

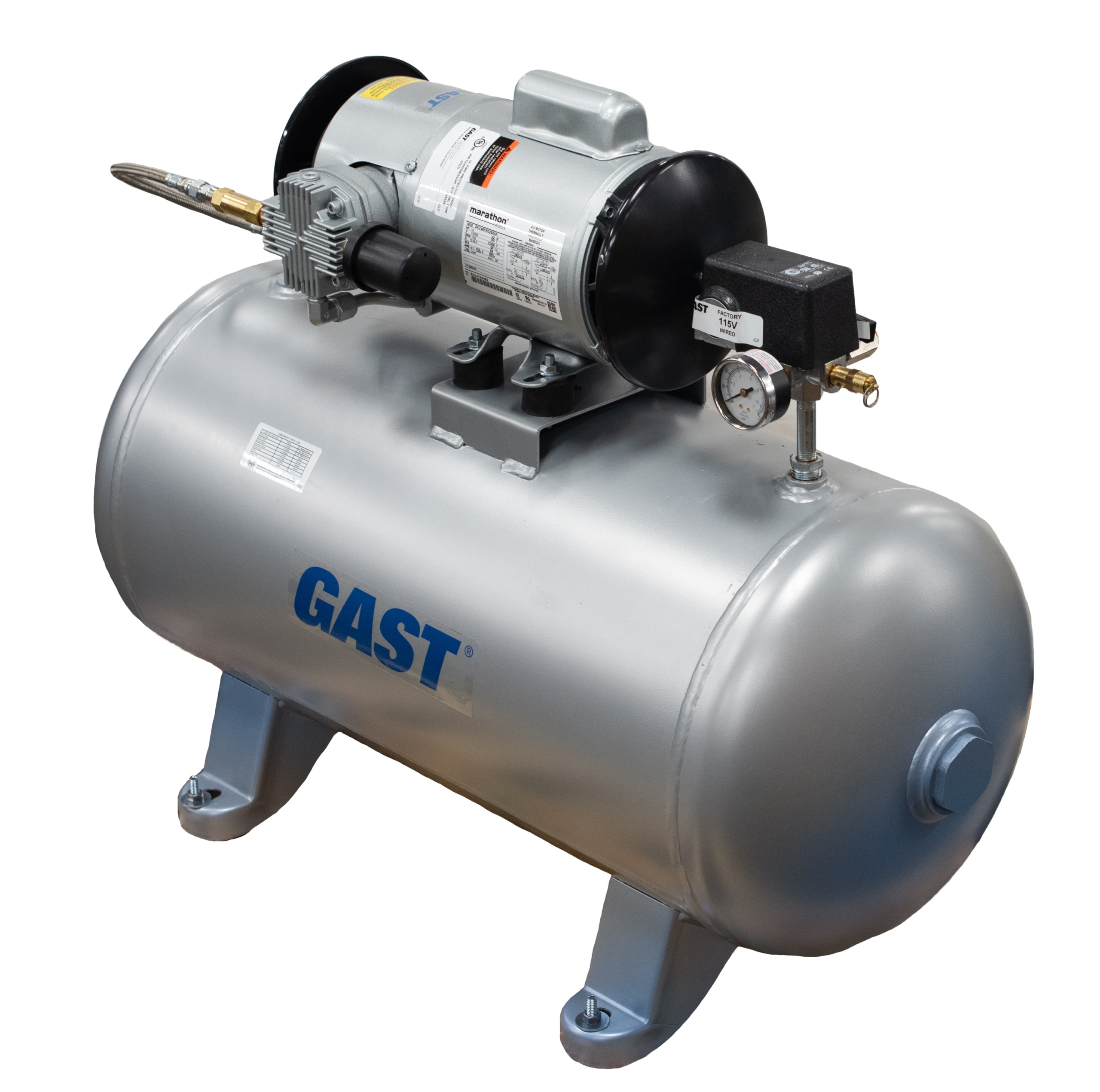

Designed for flexibility and longevity, our Gast tank systems are the go-to solution for Designed for flexibility and longevity, our Gast tank systems are the go-to solution for demanding applications with the harshest operating conditions. Available in basic (uncovered) style, these systems incorporate the latest Gast piston compressor technology, offering best-in-class reliability, quality, and performance. These plug-and-play systems are available in numerous tank sizes and mounting options allowing customization to suit specific applications.
Systems powered by our mid-compact 3L- 4L- 5H-6L twin cylinder piston compressors efficiently provide pressurized air at a wide range of pressures and air flow rates. Their robust designs feature corrosion-resistant internal components and oil free operation, ensuring reliable performance and clean and contaminant-free.
The 3L- 4L- 5H-6L tank systems are perfect for various applications requiring high, consistent pressure such as dry-sprinkler systems for fire protection inflation, or power spraying in general industry, food and beverage, automotive, and manufacturing.
Find your perfect system solution below.
Highlights
- Durable and Oil-Free: Robust construction delivering clean, contaminant-free air
- High Pressure Capability: Suitable for demanding, consistent pressure
- Tank-mounted: Tank sizes ranging from 2 to 60 gallons available
- Riser Mount Options: Elevates the compressor above the ground or floor level, simplifying installation and maintenance
- Capabilities: 1/3 -1HP and pressure to 100 psi
Specifications
PISTON TANK SYSTEMS
| Item # | Description | Brand | System Type | Hp | Kw | Open Flow [cfm] [lpm] |
Max Pressure [psi] [Bar] |
Flow @ Max Pressure [cfm] [LPM] |
AMPS [50Hz] [60Hz] [DC] |
Voltage [50Hz] [60Hz] [DC] |
Sound Level [DBA] | Weight [lb] [kg] | Tank Volume [GAL] [Liters] | Dimensions [in] [mm] |
Regulatory | Coo | Plug Type | Product Series | Pressure | Vacuum | Downloads | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3LBA-46S-M300AX | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 0.333333333333333 | 0.248566666666667 | N/A3— | N/A84.9504959964435— | 3.44738 | 3.44738 | N/A2— | N/A56.633663997629— | N/A6.6— | N/A115— | 75 | 30.2 13.698489574 | N/A | N/A |
15.5 L 12.35 W 8.11 H 393.7 L 313.69 W 205.994 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 3LBA-46T-M300AX | RECIPROCATING COMPRESSOR | Gast | Basic | 0.333333333333333 | 0.248566666666667 | N/A3— | N/A84.9504959964435— | 3.44738 | 3.44738 | N/A2— | N/A56.633663997629— | N/A6.6— | N/A115— | 75 | 80 36.2873896 | 12 | 45.42492 |
26 L 13.5 W 22.78 H 660.4 L 342.9 W 578.612 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 3LBA-55S-M300AX | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 0.333333333333333 | 0.248566666666667 | N/A3— | N/A84.9504959964435— | 3.44738 | 3.44738 | N/A2— | N/A56.633663997629— | N/A6.6— | N/A115— | 75 | 30.2 13.698489574 | N/A | N/A |
15.55 L 12.35 W 8.11 H 394.97 L 313.69 W 205.994 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 3LBD-29-M303X | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 0.333333333333333 | 0.248566666666667 | N/A3— | N/A84.9504959964435— | 3.44738 | 3.44738 | N/AN/A— | 1.953.8020093— | N/A4— | 220N/A— | N/A | 70 31.7514659 | 12.35 | N/A |
14.5 L 12.35 W 8.11 H 368.23 L 313.69 W 206.04 H |
CE,CSA, UKCA | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 4LCB-46S-M450GX | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 0.5 | 0.37285 | N/A4.2— | N/A118.930694395021— | 3.44738 | 3.44738 | N/A3— | N/A84.9504959964435— | N/A12/6— | N/A115/230— | 75 | 39.5 17.916898615 | N/A | N/A |
16.02 L 13.14 W 8.62 H 406.908 L 333.756 W 218.948 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 4LCB-46T-M450GX | RECIPROCATING COMPRESSOR | Gast | Basic | 0.5 | 0.37285 | N/A4.2— | N/A118.930694395021— | 3.44738 | 3.44738 | N/A3— | N/A84.9504959964435— | N/A12/6— | N/A115/230— | 75 | 109 49.44156833 | 20 | 75.7082 |
33 L 16 W 26.69 H 838.2 L 406.4 W 677.926 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 4LCB-55S-M450GX | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 0.5 | 0.37285 | N/A4.2— | N/A118.930694395021— | 3.44738 | 3.44738 | N/A3— | N/A84.9504959964435— | N/A12/6— | N/A115/230— | 75 | 35 15.87573295 | N/A | N/A |
16.02 L 13.14 W 8.62 H 406.908 L 333.756 W 218.948 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 5LCA-46S-M550GX | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 0.75 | 0.559275 | N/A5.8— | N/A164.237625593124— | 3.44738 | 3.44738 | N/A4.6— | N/A130.257427194547— | N/A15.8/7.3-7.9— | N/A115/208-230— | 75 | 47.5 21.545637575 | N/A | N/A |
16.97 L 13.19 W 8.94 H 431.038 L 335.026 W 227.076 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 5LCA-46T-M550GX | RECIPROCATING COMPRESSOR | Gast | Basic | 0.75 | 0.559275 | N/A5.8— | N/A164.237625593124— | 3.44738 | 3.44738 | N/A4.6— | N/A130.257427194547— | N/A15.8/7.3-7.9— | N/A115/208-230— | 75 | 109 49.44156833 | 20 | 75.7082 |
33 L 16 W 26.69 H 838.2 L 406.4 W 677.926 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 5HCD-108-M550NGX | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 0.75 | 0.559275 | N/A4.7— | N/A133.089110394428— | 6.89476 | 6.89476 | N/A2.5— | N/A70.7920799970363— | N/A15.8/7.3-7.9— | N/A115/208-230— | 75 | 47.5 21.545637575 | N/A | N/A |
16.97 L 13.19 W 8.94 H 431.038 L 335.026 W 227.076 H |
CE, cURus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 6LCF-46S-M616NEX | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 1 | 0.7457 | N/A6.3— | N/A178.396041592531— | 3.44738 | 3.44738 | N/A5— | N/A141.584159994073— | N/A14.8/7.4— | N/A115/230— | 81 | 55.2 25.038298824 | N/A | N/A |
18.92 L 13.25 W 8.62 H 480.568 L 336.55 W 218.948 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
