Model 120R

Designed for flexibility, quiet operation, and optimum performance, our JUN-AIR tank systems easily handle large tasks and are ideal for virtually any application. Available in basic and cabinet styles, these systems Incorporating the latest Gast rocking piston compressor technology, offering best-in-class reliability, quality, and performance. These convenient plug-and-play systems are compact in size and available in numerous tank sizes and mounting options allowing customization to suit specific applications.

Systems powered by our 120R air compressors offer higher-pressure performance at significantly lower sound levels. Engineered for maximum airflow with lower amp draw, the 120R delivers unmatched power while using less space and energy. It features corrosion-resistant materials and operates oil-free, ensuring reliable performance and efficiently delivering clean, contaminant-free pressurized air at a wide range of pressures and airflow rates.

The 120R tank systems are perfect for numerous applications in tighter spaces requiring steady and precise air flow where sound level and long life are key such as healthcare, food and beverage, lab equipment, and sprinkler systems, where they deliver clean air, maintain sterile environments, and help maintain product quality and freshness.

Find your perfect system solution below.

Read More
Highlights
  • Higher-Pressure Performance: Patented crossover chamber design regulates airflow to dampen sound and optimize performance
  • Basic Systems: Uncovered compressor and tank (sizes from 4 to 90 liters) with filters, regulators, and automatic drains

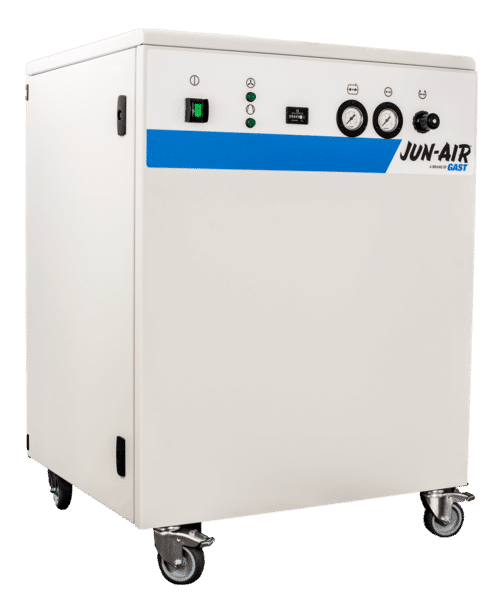

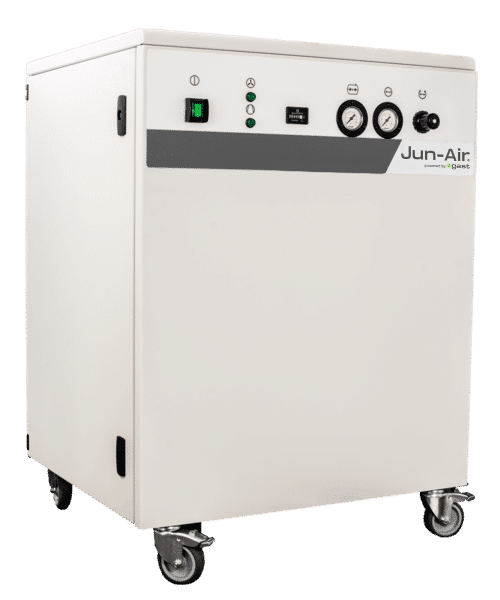

  • Cabinet Systems: Fully enclosed compressor and tank (sizes from 4 to 40 liters), reducing sound by 15%-20%. Includes temperature-controlled fans, filters, regulators, and gauges, and optional dryer systems
  • High Pressure at Lower Amps: Unmatched power in a smaller footprint
  • Capabilities: 2 to 4 HP, air flows up to 12 cfm, pressure up to 125 psi

Looking for a Plug-and-Play Solution?

Series Systems

Specifications

ROCKING PISTON BASIC AND CABINET TANK SYSTEMS
/
Item # Description Brand System Type Hp Kw Open Flow
[cfm] [lpm]
Max Pressure
[psi] [Bar]
Flow @ Max Pressure
[cfm] [LPM]
AMPS
[50Hz] [60Hz] [DC]
Voltage
[50Hz] [60Hz] [DC]
Sound Level [DBA] Weight [lb] [kg] Tank Volume [GAL] [Liters] Dimensions
[in] [mm]
Regulatory Coo Plug Type Product Series Pressure Vacuum Downloads
1203310 120R-40B JUN-AIR 2 1.4914 910— 254.851487989331283.168319988145— 116 7.9979216 55.9— 141.58167.069308793006— 810— 230230— 79 120 54.4310844 10.56688 40 18.09 L
21.97 W
27.53 H
459.486 L
558.038 W
699.262 H
CE, UKCA USA TP-52 16A EU ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
1203560 120R-40BQ3 JUN-AIR 2 1.4914 78— 198.217823991701226.534655990516— 116 7.9979216 67— 169.9198.217823991701— 810— 230230— 79 114 51.70953018 10.56688 40 22.29 L
26.32 W
27.53 H
566.166 L
668.528 W
699.262 H
CE, UKCA USA TP-52 16A EU ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
1206018 120R-40M JUN-AIR 2 1.4914 78.1— 198.217823991701229.366339190397— 116 7.9979216 4.15— 116.1141.584159994073— 810— 230230— 69 245 111.13013065 10.56688 40 26.55 L
24.97 W
33.73 H
674.37 L
634.238 W
856.742 H
CE, UKCA USA TP-52 16A EU NEMA6-15P ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
1206061 120R-40MQ3 JUN-AIR 2 1.4914 7.58.2— 212.376239991109232.198022390279— 116 7.9979216 4.05— 113.27141.584159994073— 810— 230230— 69 256 116.11964672 10.56688 40 26.55 L
24.97 W
33.73 H
674.37 L
634.238 W
856.742 H
cULus, CE, UKCA USA NEMA 6-15P ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
1206215 2x120R-40M JUN-AIR 4 2.9828 1213— 339.801983985774368.118815984588— 116 7.9979216 89— 226.53254.851487989331— 1620— 230230— 70 335 151.95344395 10.56688 40 26.55 L
29.92 W
33.8 H
674.37 L
759.968 W
858.52 H
CE, UKCA USA NEMA 6-20P ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
1206330 2x120R-40MQ6 JUN-AIR 4 2.9828 1012— 283.168319988145339.801983985774— 116 7.9979216 4.55.5— 127.43155.74257599348— 1620— 230230— 69 373 169.18995401 10.56688 40 26.04 L
29.92 W
32.32 H
661.416 L
759.968 W
820.928 H
CE, UKCA USA ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
1203730 2x120R-90BQ6 JUN-AIR 4 2.9828 1012— 283.168319988145339.801983985774— 116 7.9979216 67— 169.9198.217823991701— 1620— 230230— 80 270 122.4699399 23.77548 90 40.39 L
23.3 W
35.28 H
1025.906 L
591.82 W
896.112 H
CE, UKCA USA ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
120R-200S RECIPROCATING COMPRESSOR Gast Riser Mount 2 1.4914 911— 254.851487989331311.48515198696— 125 8.61845 55.5— 141.58155.74257599348— 810— 230230— 83 94 42.63768278 2 7.57082 20.24 L
13.16 W
23.03 H
514.096 L
334.264 W
584.962 H
cULus USA - ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
120R-200T RECIPROCATING COMPRESSOR Gast Basic 2 1.4914 1011.5— 283.168319988145325.643567986367— 125 8.61845 56— 141.58169.900991992887— 810— 230230— 83 128 58.05982336 20 75.7082 19.41 L
17.57 W
44.87 H
493.014 L
446.278 W
1139.698 H
cULus USA - ROCKING PISTON BASIC AND CABINET TANK SYSTEMS Yes No View
