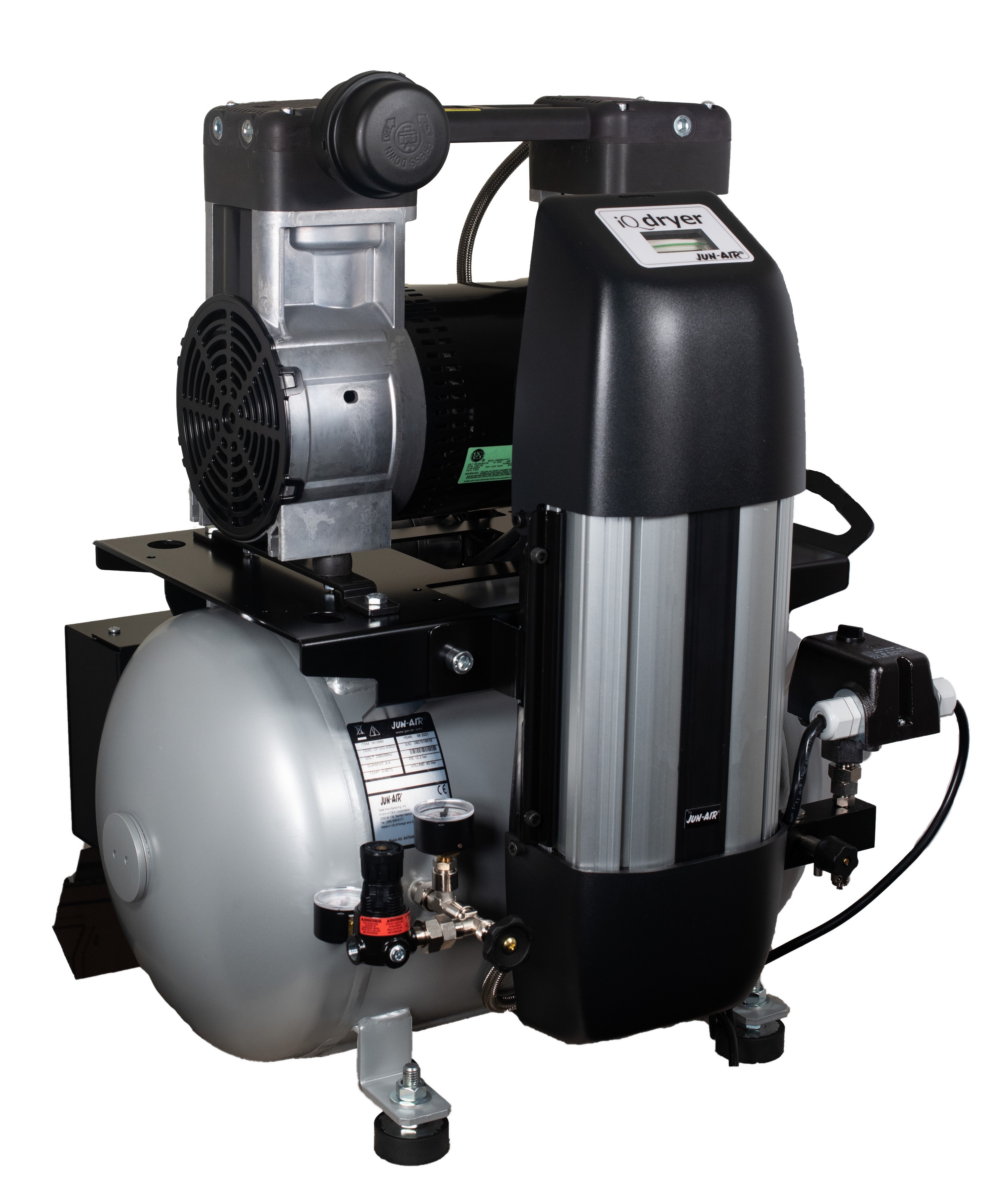

120R compressor with air dryer on an uncovered tank system
Other
GAST 120R Series 2 Horsepower Rocking Piston Air Compressor
Retrofit GAST 120R into the Jun-Air OF1202 Cabinet System
120R-40B/Q3 Sales Flyer
120R Tank System Purge Adjustment Video
120R Systems Overview
iQ-Dryer Manual

120R-40BQ3

Description

The 120R-40BQ3 replaces and improves upon the outgoing OF1202-40BQ3.

120R = 120R 2HP Oil-less Rocking Piston Compressor
  40    = 40L Tank/Receiver
   B     = Jun-Air Basic System (Compressor is Uncovered)
   Q     = Includes Air Dryer

120R Series Oil-less Rocking Piston is ideal for global plug-n-play laboratory, medical, dental, gas generation, beverage dispensing, and other applications where noise and long life are key requirements. The GAST 120R Oil-less Rocking Piston Compressor inside of a Jun-Air System has few moving parts which reduces noise, vibrations, as well as wear and tear. The reduced noise and vibration level makes it possible to place the compressor directly at the place of use. Our Jun-Air Systems are rated for 100% continuous duty cycle and include a 2-year factory warranty.

Specifications

Thermal Protection: YES
ps_regulatory_approval: CE
Flow @ 60 Hz: 8 cfm
( 13.59 m3h )
Flow @ Max Pressure - 50 Hz: 4.1 cfm
( 6.97 m3h )
Flow @ Max Pressure - 60 Hz: 4.5 cfm
( 7.65 m3h )
Max Pressure: 120 psi
( 8.27 bar )
Power: 2 hp
( 1.49 kW )
Max Sound Level @ 50 Hz: 75 dB(A)
Max Sound Level @ 60 Hz: 77 dB(A)
Weight: 144 lbs
( 65.32 kg )
Duty Cycle: 100%
Tank Size: 40 liter
( 10.57 gal )
Dew Point: -40
Warranty: 2 years
Thermal Protection: YES
ps_regulatory_approval: CE
Flow @ 60 Hz: 8 cfm
( 13.59 m3h )
Flow @ Max Pressure - 50 Hz: 4.1 cfm
( 6.97 m3h )
Flow @ Max Pressure - 60 Hz: 4.5 cfm
( 7.65 m3h )
Max Pressure: 120 psi
( 8.27 bar )
Power: 2 hp
( 1.49 kW )
Max Sound Level @ 50 Hz: 75 dB(A)
Max Sound Level @ 60 Hz: 77 dB(A)
Weight: 144 lbs
( 65.32 kg )
Duty Cycle: 100%
Tank Size: 40 liter
( 10.57 gal )
Dew Point: -40
Warranty: 2 years
