Model Family
Model 7L-7H-8H
Designed for flexibility and longevity, our Gast tank systems are the go-to solution for demanding applications with the harshest operating conditions. Available in basic (uncovered) style, these systems incorporate the latest Gast piston compressor technology, offering best-in-class reliability, quality, and performance. These plug-and-play systems are available in numerous tank sizes and mounting options allowing customization to suit specific applications.

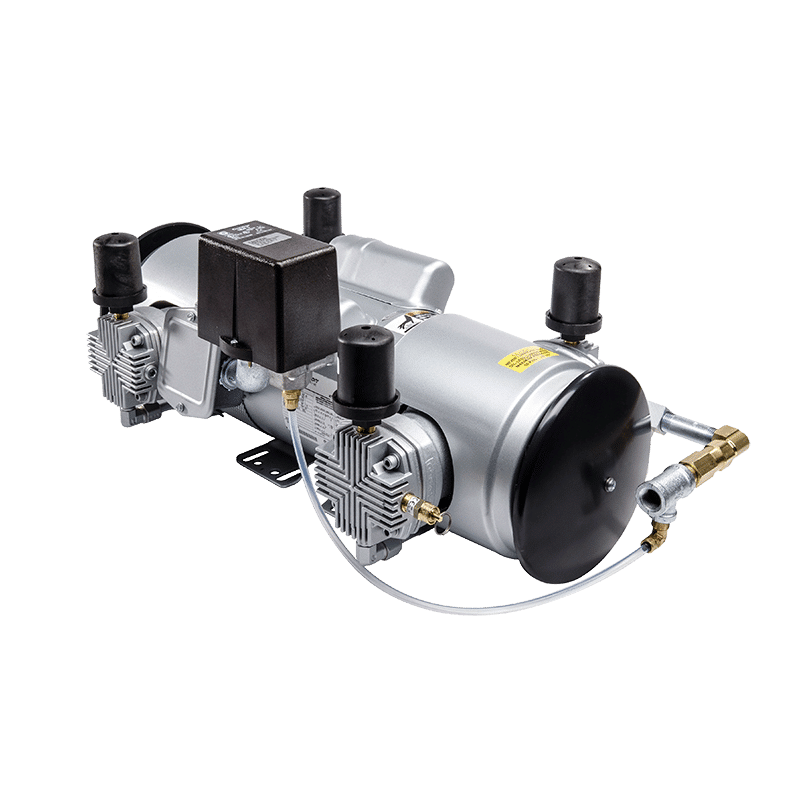

Systems powered by our mid-compact 7L-8L-8H 4-cylinder piston compressors efficiently provide pressurized air at a wide range of pressures and air flow rates. Their robust designs feature corrosion-resistant internal components and oil free operation, ensuring reliable performance and clean and contaminant-free.
The 7L-8L-8H tank systems are perfect for various applications requiring high, consistent pressure such as dry-sprinkler systems for fire protection, inflation, or power spraying in general industry, food and beverage, automotive, and manufacturing.
Find your perfect fit below.
Highlights
- Durable and Oil-Free: Robust construction delivering clean, contaminant-free air
- High Pressure Capability: Suitable for demanding, consistent pressure
- Tank-mounted: Tank sizes ranging from 2 to 60 gallons available
- Riser Mount Options: Elevates the compressor above the ground or floor level, simplifying installation and maintenance
- Capabilities: 1 ½-2 HP, air flow to 9.6, and air pressure to 100 psi
Specifications
PISTON TANK SYSTEMS
| Item # | Description | Brand | System Type | Hp | Kw | Open Flow [cfm] [lpm] |
Max Pressure [psi] [Bar] |
Flow @ Max Pressure [cfm] [LPM] |
AMPS [50Hz] [60Hz] [DC] |
Voltage [50Hz] [60Hz] [DC] |
Sound Level [DBA] | Weight [lb] [kg] | Tank Volume [GAL] [Liters] | Dimensions [in] [mm] |
Regulatory | Coo | Plug Type | Product Series | Pressure | Vacuum | Downloads | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7LDE-46S-M750X | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 1.5 | 1.11855 | N/A10.2— | N/A288.831686387908— | 50 | 3.44738 | N/A7.8— | N/A220.871289590753— | N/A20/10— | N/A115/208-230— | 81 | 73 33.11224301 | N/A | N/A |
25.26 L 12.5 W 9.62 H 641.604 L 317.5 W 244.348 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 7LDE-46T-M750X | RECIPROCATING COMPRESSOR | Gast | Basic | 1.5 | 1.11855 | N/A10.2— | N/A288.831686387908— | 50 | 3.44738 | N/A7.8— | N/A220.871289590753— | N/A20/10— | N/A115/208-230— | 81 | 185 83.91458845 | 30 | 113.5623 |
38 L 17 W 28.12 H 965.2 L 431.8 W 714.248 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 8LDF-46S-M850X | RECIPROCATING COMPRESSOR | Gast | Riser Mount | 2 | 1.4914 | 9.612.2— | 271.841587188619345.465350385537— | 50 | 3.44738 | 8.110— | 229.366339190397283.168319988145— | 24/1224/12— | 110/220115/230— | 81 | 90 40.8233133 | N/A | N/A |
25.9 L 12.6 W 9.62 H 657.86 L 320.04 W 244.348 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 8LDF-46T-M850X | RECIPROCATING COMPRESSOR | Gast | Basic | 2 | 1.4914 | 9.612.2— | 271.841587188619345.465350385537— | 50 | 3.44738 | 8.110— | 229.366339190397283.168319988145— | 24/1224/12— | 110/220115/230— | 81 | 200 90.718474 | 30 | 113.5623 |
38 L 17 W 28.59 H 965.2 L 431.8 W 726.186 H |
cULus | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
| 8HDM-11TD-M853 | RECIPROCATING COMPRESSOR | Gast | Basic | 2 | 1.4914 | 9.111— | 257.683171189212311.48515198696— | 100 | 6.89476 | 5.87— | 164.237625593124198.217823991701— | 7/4.57/4— | 220-240/380-440230/460— | 76 | 200 90.718474 | 30 | 113.5623 |
38 L 17 W 28.59 H 965.2 L 431.8 W 726.186 H |
N/A | USA | N/A | PISTON TANK SYSTEMS | Yes | No | View |
