Model Family
MOA-MAA
Designed for optimum performance, precision, and quiet operation, our MOA and MAA models are ideal for noise-sensitive environments with low power consumption requirements. These compact and lightweight models of our diaphragm series, the rugged MOA and MAA offer versatile functionality, serving as both compressors and vacuum pumps with ability to tolerate liquids and operate at cool temperatures. Engineered for high efficiency and durability, these models feature corrosion-resistant materials, oil-free operation, and airtight sealing, ensuring reliable performance and clean, contaminant-free air.
The MOA and MAA are perfect for applications in healthcare, food and beverage, medical devices, and environmental monitoring. They ensure precise fluid control and management, accurate sampling and measurement, and enhanced efficiency, contributing to improved patient safety, experimental accuracy, production quality, and operational productivity.
Find your perfect fit below.
Highlights
- Chemically Resistant materials: High-performance thermoplastic polymer (PPS) and synthetic rubber (EPDM) provide maximum chemical, heat, and corrosion resistance for all wetted components
- Electromagnetic Interference (EMI) Suppression: Protects sensitive electronics from electromagnetic interference
- Versatile Functionality: Operates as compressor or pump, available in dual frequency, shaded pole, and permanent split capacitor (PSC) versions, as well as multi-voltages for worldwide applications
- Reliability: Durable materials and components ensure consistent performance, minimizing downtime and maintenance
- Capabilities: AC/DC, HP to 1/8, air flows up to 1 cfm, pressure to 50 psi, and vacuum capabilities to 28 in-HG
Specifications
DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP
| Item # | Description | Hp | Kw | Open Flow [cfm] [lpm] |
Max Pressure [psi] [Bar] |
Max Vacuum [in hg] |
Flow @ Max Vac [CFM] [LPM] |
AMPS [50Hz] [60Hz] [DC] |
Voltage [50Hz] [60Hz] [DC] |
Sound Level [DBA] | Weight [lb] [kg] | Dimensions [in] [mm] |
Regulatory | Coo | Plug Type | Product Series | Mounting Dimensions [in] [mm] | Pressure | Vacuum | Downloads | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOA-P101-AA | Diaphragm Compressors & Pumps | 0.0625 | 0.04660625 | —0.5— | —14.1584159994073— | 50 | 3.44738 | ——— | ——— | N/A2.1N/A | N/A115N/A | 70 | 5.3 2.404039561 |
7.03 L 4.27 W 4.72 H 178.562 L 108.458 W 119.888 H |
CE,cURus | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.09 L 3.5 W 103.886 L 88.9 W |
Yes | No | View | |

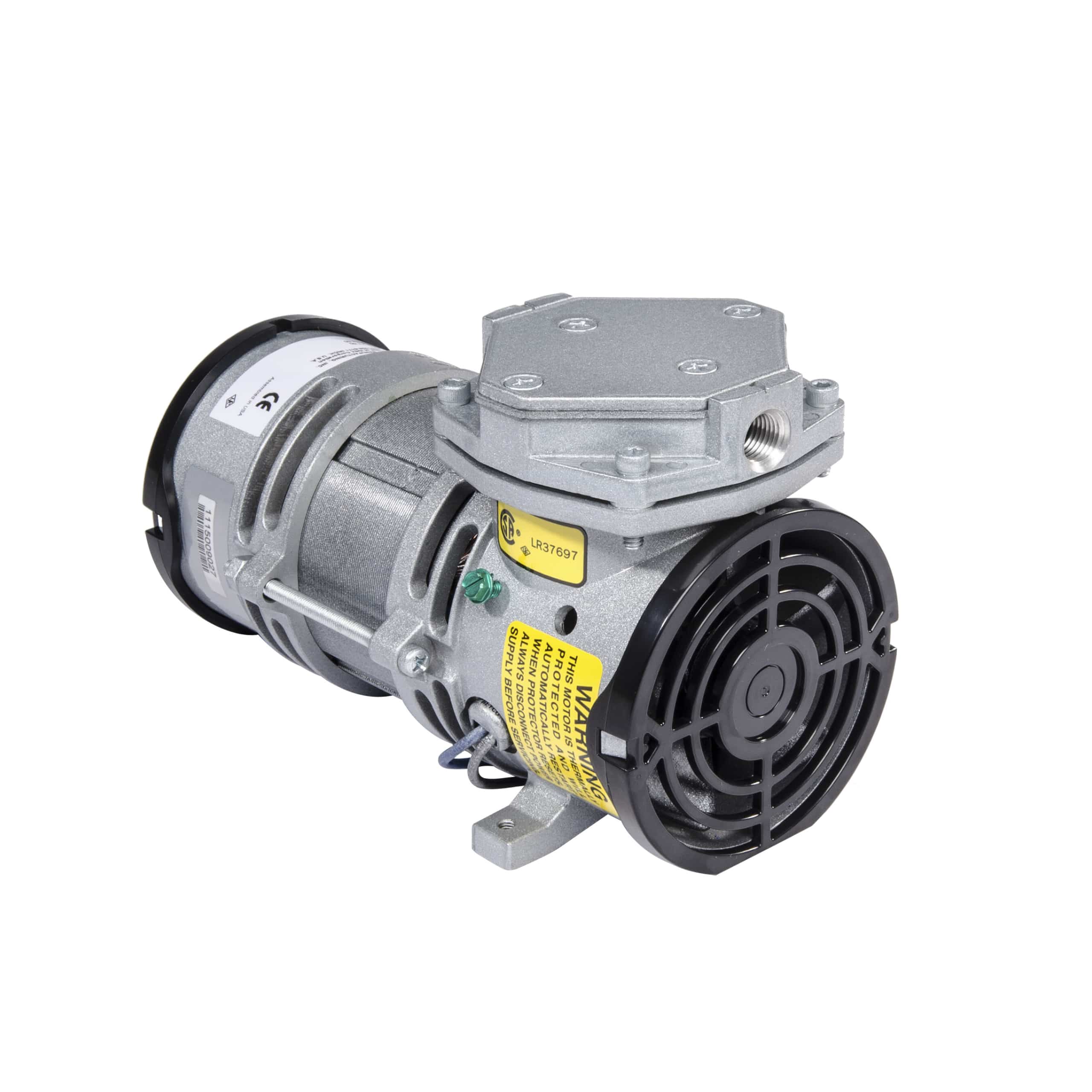

| MOA-P101-CD | Diaphragm Compressors & Pumps | 0.0625 | 0.04660625 | 0.40.5— | 11.326732799525814.1584159994073— | 50 | 3.44738 | 24 | ——— | ——— | 1..31N/A | 220230N/A | 70 | 5.3 2.404039561 |
7.53 L 4.27 W 4.72 H 191.262 L 108.458 W 119.888 H |
CE, CSA, UKCA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.59 L 3.5 W 116.586 L 88.9 W |
Yes | Yes | View |

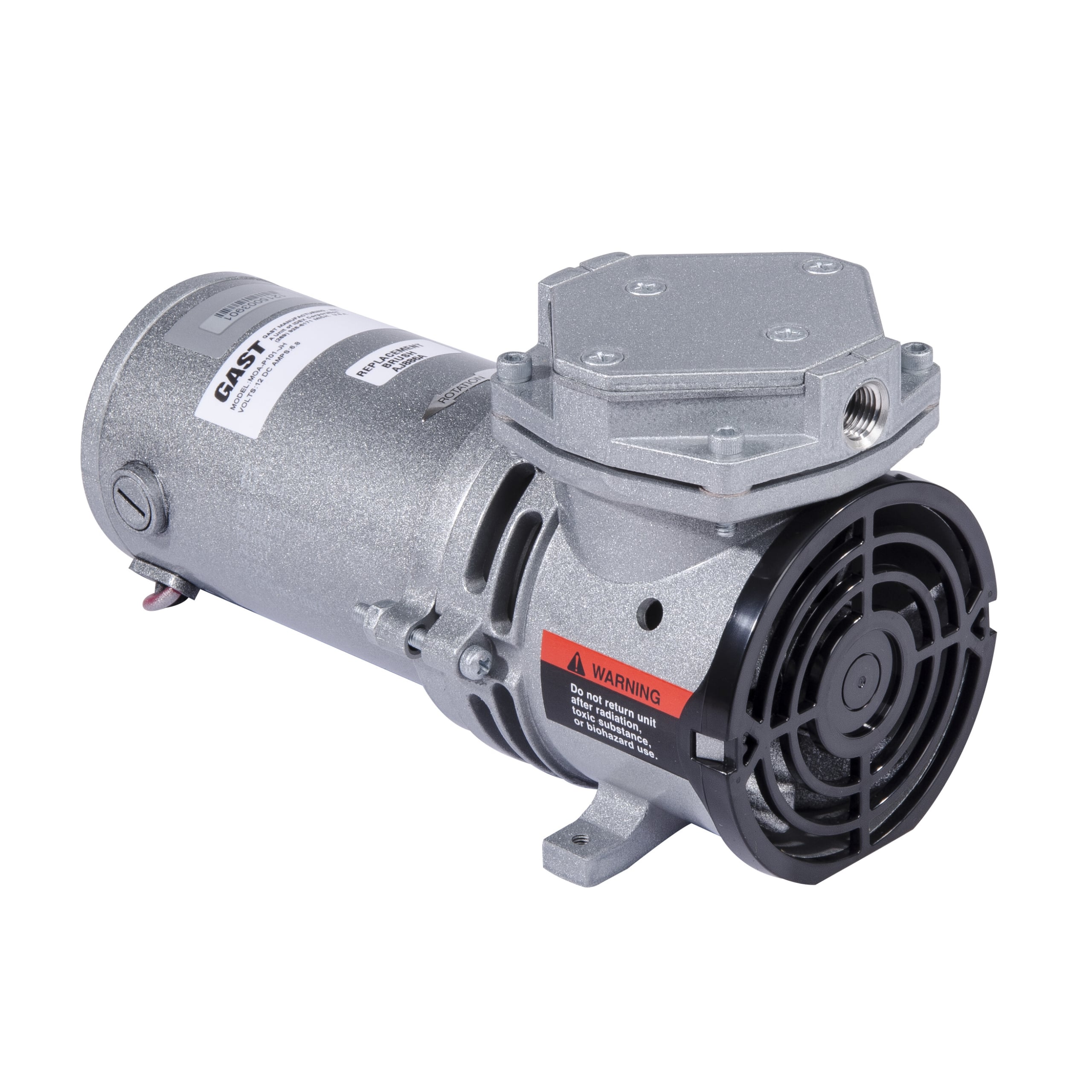

| MOA-P101-JK | Diaphragm Compressors | 0.0625 | 0.04660625 | ——0.8 | ——22.6534655990516 | 50 | 3.44738 | ——— | ——— | N/AN/A3.2 | N/AN/A24V | 70 | 5.3 2.404039561 |
7.64 L 4.27 W 4.72 H 194.056 L 108.458 W 119.888 H |
CE, UKCA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
5.1 L 3.5 W 129.54 L 88.9 W |
Yes | No | View | |
| MOA-P108-FB | Diaphragm Compressors | 0.125 | 0.0932125 | 0.670.8— | 18.972277439205722.6534655990516— | 50 | 3.44738 | ——— | ——— | 1.11N/A | 110115N/A | 70 | 5.3 2.404039561 |
7.03 L 4.27 W 4.72 H 178.562 L 108.458 W 119.888 H |
CE, CSA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.09 L 3.5 W 103.886 L 88.9 W |
Yes | No | View | |
| MOA-P108-FD | Diaphragm Compressors & Pumps | 0.125 | 0.0932125 | 0.650.8— | 18.405940799229422.6534655990516— | 50 | 3.44738 | 24 | ——— | ——— | 1.11N/A | 220230N/A | 70 | 5.3 2.404039561 |
7.03 L 4.27 W 4.72 H 178.562 L 108.458 W 119.888 H |
CE, CSA, UKCA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.09 L 3.5 W 103.886 L 88.9 W |
Yes | Yes | View |
| MOA-P108-HB | Diaphragm Compressors | 0.0625 | 0.04660625 | 0.40.5— | 11.326732799525814.1584159994073— | 50 | 3.44738 | ——— | ——— | 1.51.4N/A | 110115N/A | 70 | 5.3 2.404039561 |
7.53 L 4.27 W 4.72 H 191.262 L 108.458 W 119.888 H |
CE, cURus | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.59 L 3.5 W 116.586 L 88.9 W |
Yes | No | View | |
| MOA-P126-JK | Diaphragm Compressors | 0.0625 | 0.04660625 | ——0.8 | ——22.6534655990516 | 50 | 3.44738 | ——— | ——— | N/AN/A3.2 | N/AN/A24V | 70 | 5.3 2.404039561 |
7.64 L 4.27 W 4.72 H 194.056 L 108.458 W 119.888 H |
CE, UKCA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
5.1 L 3.5 W 129.54 L 88.9 W |
Yes | No | View | |
| MOA-V111-CD | Diaphragm Compressors & Pumps | 0.0625 | 0.04660625 | 0.40.5— | 11.326732799525814.1584159994073— | 24 | ——— | ——— | 1.21N/A | 220230N/A | 70 | 5.3 2.404039561 |
7.03 L 4.27 W 4.72 H 178.562 L 108.458 W 119.888 H |
CE, CSA, UKCA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.09 L 3.5 W 103.886 L 88.9 W |
Yes | Yes | View | ||
| MOA-V111-JH | Diaphragm Pumps | 0.0625 | 0.04660625 | ——0.8 | ——22.6534655990516 | 24 | ——— | ——— | N/AN/A6.8 | N/AN/A12V | 70 | 5.6 2.540117272 |
8.68 L 4.27 W 4.69 H 220.472 L 108.458 W 119.126 H |
CE, UKCA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
5.1 L 3.5 W 129.54 L 88.9 W |
No | Yes | View | ||
| MOA-V112-AE | Diaphragm Compressors & Pumps | 0.0625 | 0.04660625 | 0.40.5— | 11.326732799525814.1584159994073— | 24 | ——— | ——— | 2.21.8N/A | 110115N/A | 70 | 5.6 2.540117272 |
7.03 L 4.27 W 4.72 H 178.562 L 108.458 W 119.888 H |
CE, CSA, UKCA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.09 L 3.5 W 103.886 L 88.9 W |
Yes | Yes | View | ||
| MOA-V113A-AE | Diaphragm Pumps | 0.0625 | 0.04660625 | 0.40.5— | 11.326732799525814.1584159994073— | 24 | ——— | ——— | 2.21.8N/A | 110115N/A | 70 | 5.6 2.540117272 |
7.03 L 4.27 W 4.72 H 178.562 L 108.458 W 119.888 H |
CSA | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.09 L 3.5 W 103.886 L 88.9 W |
No | Yes | View | ||
| MAA-V103-HB | Diaphragm Pumps | 0.0625 | 0.04660625 | 0.81— | 22.653465599051628.3168319988145— | 24 | ——— | ——— | 1.71.7N/A | 110115N/A | 70 | 8 3.62873896 |
8.44 L 4.69 W 4.72 H 214.376 L 119.126 W 119.888 H |
cURuS,CE | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.99 L 3.5 W 126.746 L 88.9 W |
No | Yes | View | ||
| MAA-V109-HB | Diaphragm Pumps | 0.0625 | 0.04660625 | 0.350.4— | 9.9108911995850811.3267327995258— | 28 | ——— | ——— | 1.11.2N/A | 110115N/A | 70 | 8 3.62873896 |
8.47 L 4.69 W 4.77 H 215.138 L 119.126 W 121.158 H |
cURus | USA | N/A | DIAPHRAGM AIR COMPRESSOR-VACUUM PUMP |
4.95 L 3.5 W 125.73 L 88.9 W |
No | Yes | View |
