Model Family
3L-3H, 4L-4H-4V, 5L-5H-5V, 6H
Built for durability and longevity, our tank-mounted models 3L-3H, 4L-4H-4V, 5L-5H-5V, and 6H are the go-to solutions for demanding applications with the harshest operating conditions. These mid-compact size piston series air compressors and vacuum pumps efficiently provide pressurized air or vacuum at a wide range of pressures and air flow rates. Their robust designs feature corrosion-resistant internal components and oil free operation, ensuring reliable performance and clean and contaminant-free.

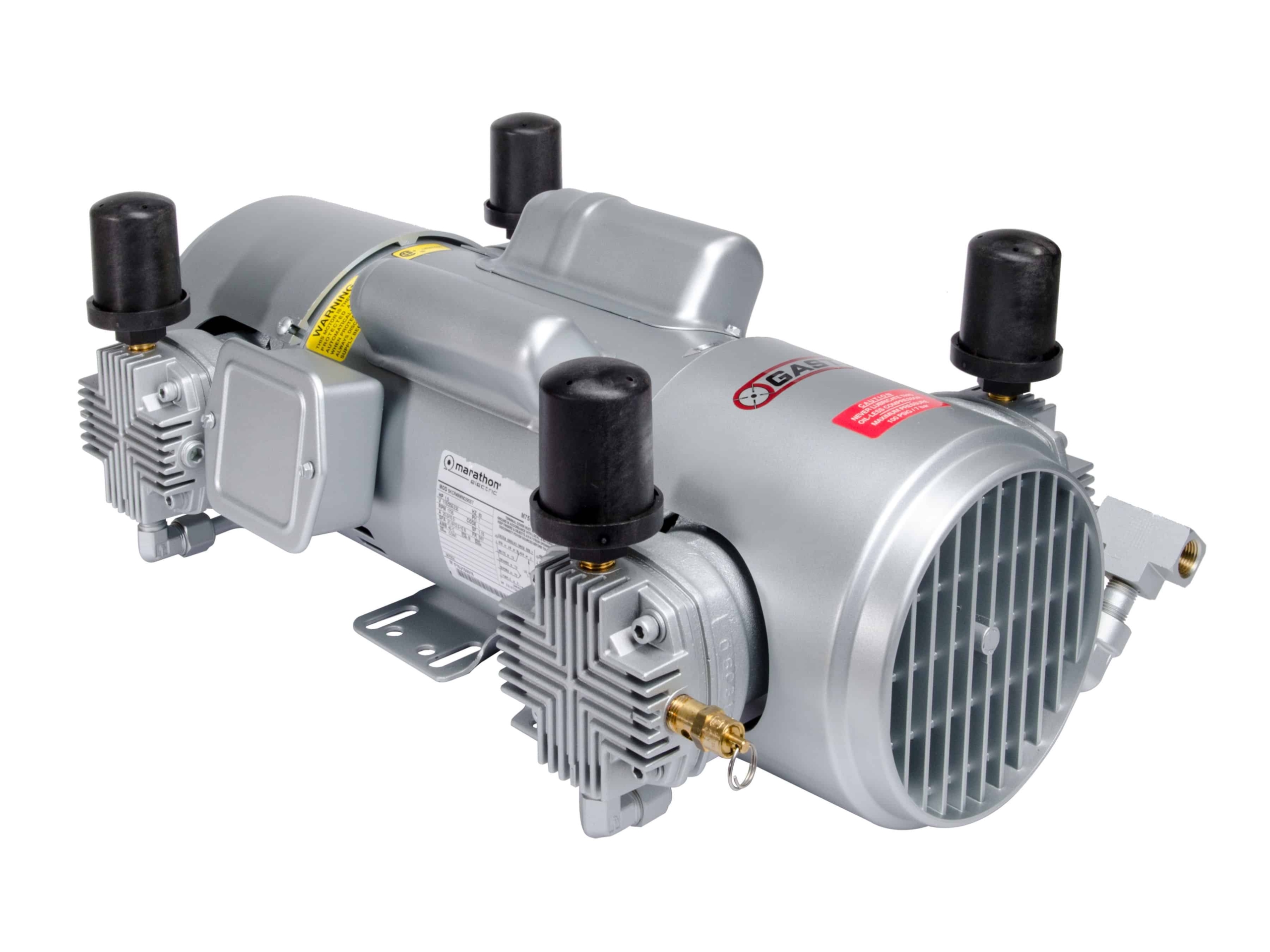

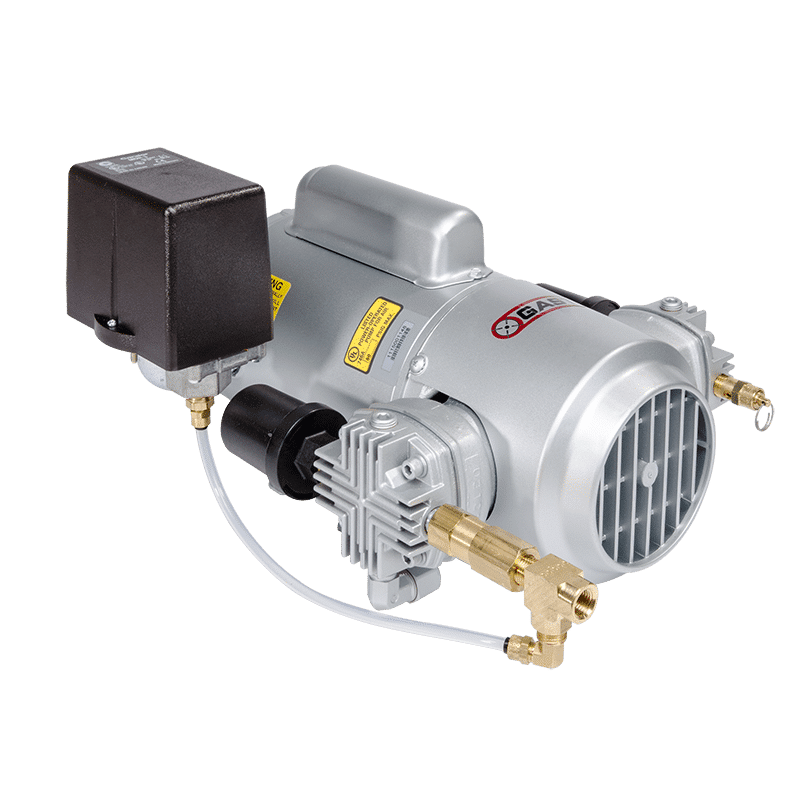

These twin cylinder air compressors 3L-3H, 4L-4H, 5L-5H and 6H are perfect for various applications requiring high, consistent pressure such as cable pressurization, inflation, or power spraying in general industry, food and beverage, automotive, and manufacturing. Model 4V (two cylinder) and 5V (4-cylinder) pumps provide reliable vacuum for processes like component testing, material handling and food preservation essential in are essential for automotive, manufacturing, and food and beverage applications.
Find your perfect fit below.
Highlights
- Durable and Oil-Free: Robust construction delivering clean, contaminant-free air
- High Pressure Capability: Suitable for demanding, consistent pressure
- Tank-mounted: Tank sizes ranging from 2 to 60 gallons available
- Capabilities: 1/3 -1HP, air flows 2.4-11 cfm, pressure from 50 - 100psi, and vacuum capabilities up to 28.5 in-HG
Specifications
PISTON AIR COMPRESSOR/VACUUM PUMP
/
| Item # | Description | Hp | Kw | Open Flow [cfm] [lpm] |
Max Pressure [psi] [Bar] |
Flow @ Max Pressure [cfm] [LPM] |
Max Vacuum [in hg] |
Flow @ Max Vac [CFM] [LPM] |
AMPS [50Hz] [60Hz] [DC] |
Voltage [50Hz] [60Hz] [DC] |
Sound Level [DBA] | Weight [lb] [kg] | Dimensions [in] [mm] |
Regulatory | Coo | Plug Type | Product Series | Mounting Dimensions [in] [mm] | Pressure | Vacuum | Downloads | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3LBA-10-M300AX | Piston Compressors | 0.333333333333333 | 0.248566666666667 | โ3โ | โ84.9504959964435โ | 50 | 3.44738 | โ2โ | โ56.633694โ | N/A | โโโ | โโโ | N/A6.6N/A | N/A115N/A | 75 | 24 10.88621688 |
12.45 L 11.07 W 7.33 H 316.23 L 281.178 W 186.182 H |
CSA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
2.75 L 4.25 W 69.85 L 107.95 W |
Yes | No | View |
| 3HBB-10-M300AX | Piston Compressors | 0.333333333333333 | 0.248566666666667 | โ2.4โ | โ67.9603967971548โ | 100 | 6.89476 | โ1.1โ | โ31.1485317โ | N/A | โโโ | โโโ | N/A6.6N/A | N/A115N/A | 70 | 24 10.88621688 |
12.45 L 10.94 W 7.33 H 316.23 L 277.876 W 186.182 H |
cURus, CE | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
2.75 L 4.25 W 69.85 L 107.95 W |
Yes | No | View |
| 3HBB-19-M322A | Piston Compressors | 0.42 | 0.313194 | โโ2.4 | โโ67.9603967971548 | 100 | 6.89476 | โโ1.1 | โโ31.1485317 | N/A | โโโ | โโโ | N/AN/A35.5 | N/AN/A12 | 75 | 20 9.0718474 |
12.16 L 10.93 W 5.82 H 308.864 L 277.622 W 147.828 H |
CE, UKCA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
2.75 L 4.25 W 69.85 L 107.95 W |
Yes | No | View |
| 3HBB-19-M323A | Piston Compressors | 0.46 | 0.343022 | โโ2.4 | โโ67.9603967971548 | 100 | 6.89476 | โโ1.1 | โโ31.1485317 | N/A | โโโ | โโโ | N/AN/A19 | N/AN/A24 | 75 | 20 9.0718474 |
12.16 L 10.93 W 5.82 H 308.864 L 277.622 W 147.828 H |
CE, UKCA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
2.75 L 4.25 W 69.85 L 107.95 W |
Yes | No | View |
| 3HBB-48-M323A | Piston Compressors | 0.46 | 0.343022 | โโ2.4 | โโ67.9603967971548 | 50 | 3.44738 | โโ1.1 | โโ31.1485317 | N/A | โโโ | โโโ | N/AN/A19 | N/AN/A24 | 75 | 30.2 13.698489574 |
12.14 L 10.17 W 5.85 H 308.356 L 258.318 W 148.59 H |
CE | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
2.75 L 4.25 W 69.85 L 107.95 W |
Yes | No | View |
| 3HBE-10-M303X | Piston Compressors | 0.333333333333333 | 0.248566666666667 | 2.4โโ | 67.9603967971548โโ | 100 | 6.89476 | 1.1โโ | 31.15โโ | N/A | โโโ | โโโ | 4N/AN/A | 220N/AN/A | 70 | 24 10.88621688 |
12.91 L 10.86 W 6.3 H 327.914 L 275.844 W 160.02 H |
CE, CSA, UKCA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
2.75 L 4.25 W 69.85 L 107.95 W |
Yes | No | View |
| 4LCB-10-M450X | Piston Compressors | 0.5 | 0.37285 | โ4.2โ | โ118.930694395021โ | 50 | 3.44738 | โ3โ | โ84.950541โ | N/A | โโโ | โโโ | N/A2N/A | N/A115/230N/A | 75 | 33 14.96854821 |
13.28 L 12.11 W 8.94 H 337.312 L 307.594 W 227.076 H |
CSA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 4HCC-10-M450X | Piston Compressors | 0.5 | 0.37285 | โ3.5โ | โ99.1089119958507โ | 100 | 6.89476 | โ1.7โ | โ48.1386399โ | N/A | โโโ | โโโ | N/A2N/A | N/A115/230N/A | 74 | 33 14.96854821 |
14.33 L 11.96 W 5.11 H 363.982 L 303.784 W 129.794 H |
CE, CSA, UKCA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 4VCF-14-M450X | Piston Pumps | 0.5 | 0.37285 | โ5.2โ | โ147.247526393835โ | N/A | N/A | โN/Aโ | โN/Aโ | 27.5 | โโโ | โโโ | N/A2N/A | N/A115/230N/A | 75 | 38.6 17.508665482 |
|
CE, CSA | USA | NEMA 5-15P | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
No | Yes | View |
| 4VSF-10-M450X | Piston Pumps | 0.5 | 0.37285 | โ4.1โ | โ116.099011195139โ | N/A | N/A | โN/Aโ | โN/Aโ | 28.5 | โโโ | โโโ | N/A2N/A | N/A115/230N/A | 75 | 38.6 17.508665482 |
|
CSA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
No | Yes | View |
| 5LCA-10-M530X | Piston Compressors | 0.75 | 0.559275 | โ5.5โ | โ155.74257599348โ | 50 | 3.44738 | โโโ | โโโ | N/A | โโโ | โโโ | N/A6.8/3.4N/A | N/A115/230N/A | 75 | 40 18.1436948 |
14.96 L 11.81 W 8.3 H 379.984 L 299.974 W 210.82 H |
N/A | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
2.65 L 3.97 W 67.31 L 100.838 W |
Yes | No | View |
| 5LCA-10-M550NGX | Piston Compressors | 0.75 | 0.559275 | โ5.8โ | โ164.237625593124โ | 50 | 3.44738 | โ4.6โ | โ130.2574962โ | N/A | โโโ | โโโ | N/A15.8/9-7.9N/A | N/A115/208-230NA | 75 | 40 18.1436948 |
14.64 L 12.28 W 8.26 H 371.856 L 311.912 W 209.804 H |
cURus | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 5LCF-10-M551X | Piston Compressors | 0.75 | 0.559275 | โ5.5โ | โ155.74257599348โ | 50 | 3.44738 | โ4โ | โ113.267388โ | N/A | โโโ | โโโ | 14.8/7.42N/A | 100-110/220-240115/208-230N/A | 73-78 | 40 18.1436948 |
14.37 L 12.28 W 6.14 H 364.998 L 311.912 W 155.956 H |
CE, CSA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 5HCD-10-M530X | Piston Compressors | 0.75 | 0.559275 | โ4.8โ | โ135.92079359431โ | 100 | 6.89476 | โโโ | โโโ | N/A | โโโ | โโโ | N/A6.8/3.4N/A | N/A115/230N/A | 75 | 40 18.1436948 |
|
CSA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 5HCD-10-M550NGX | Piston Compressors | 0.75 | 0.559275 | โ4.8โ | โ135.92079359431โ | 100 | 6.89476 | โ2.5โ | โ70.7921175โ | N/A | โโโ | โโโ | N/A15.8/9-7.9N/A | N/A115/208-230NA | 75 | 40 18.1436948 |
14.64 L 12.28 W 6.14 H 371.856 L 311.912 W 155.956 H |
CE, cURus | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 5HCD-10-M553 | Piston Compressors | 0.75 | 0.559275 | 3.94.8โ | 110.435644795377135.92079359431โ | 100 | 6.89476 | 2.12.5โ | 59.4770.7921175โ | N/A | โโโ | โโโ | 4.8-4.9/1.9-2.03.-3.4/1.70N/A | 220-240/380-415200-230/460N/A | 73 | 50.7 22.997133159 |
15.8 L 12.04 W 6.65 H 401.32 L 305.816 W 168.91 H |
CE, cURus | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 5HCE-10-M551X | Piston Compressors | 0.75 | 0.559275 | 4.8โโ | 135.92079359431โโ | 100 | 6.89476 | 2.5โโ | 70.79โโ | N/A | โโโ | โโโ | 14.8/7.42N/A | 100-110/220-240115/208-230N/A | 75 | 40 18.1436948 |
15.75 L 12.2 W 8.38 H 400.05 L 309.88 W 212.852 H |
CE, CSA, UKCA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 5VDF-14-M750X | Piston Pumps | 1.5 | 1.11855 | โ11โ | โ311.48515198696โ | N/A | N/A | โN/Aโ | โN/Aโ | 27.5 | โโโ | โโโ | N/A20/10N/A | N/A115/208-230N/A | 75-81 | 53 24.04039561 |
|
CSA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
No | Yes | View |
| 6LCF-10-M616NEX | Piston Compressors | 1 | 0.7457 | โ6.3โ | โ178.396041592531โ | 50 | 3.44738 | โ5โ | โ141.584235โ | N/A | โโโ | โโโ | N/A10.4/5.2N/A | N/A115/230N/A | 75-81 | 60 27.2155422 |
15.68 L 12.39 W 8.17 H 398.272 L 314.706 W 207.518 H |
cURus | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 6HCA-10-M616NEX | Piston Compressors | 1 | 0.7457 | โ5.4โ | โ152.910892793598โ | 100 | 6.89476 | โ3.2โ | โ90.6139104โ | N/A | โโโ | โโโ | N/A10.4/5.2N/A | N/A115/230N/A | 81 | 60 27.2155422 |
15.68 L 12.29 W 8.42 H 398.272 L 312.166 W 213.868 H |
CE, cURus | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
| 6HCN-10-M618X | Piston Compressors | 1 | 0.7457 | 5.4โโ | 152.910892793598โโ | 100 | 6.89476 | 3.2โโ | 90.61โโ | N/A | โโโ | โโโ | 7.6N/AN/A | 220-240N/AN/A | 81 | 56.2 25.491891194 |
17.4 L 12.2 W 8.93 H 441.96 L 309.88 W 226.822 H |
CE, UKCA | USA | N/A | PISTON AIR COMPRESSOR/VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View |
