Model Family
2067-2567
Designed for efficiency, versatility, and longevity, our models 2067 and 2567 are ideal for continuous use solutions requiring higher vacuum or air pressure levels, in noise-sensitive environments. As part of the separate drive motors in our rotary vane series, these models operate efficiently as either a vacuum pump or an air compressor.
Engineered to be rugged and compact, the 2607 and 2567 feature lubricated or oil-free operation options making them extremely versatile and ideal for applications requiring for high flow, pulse-free air with consistent air pressure and clean and contaminant-free.
The 2067 and 2567 are perfect for applications that demand high, consistent air flow or vacuum in medical suction devices, environmental soil remediation, laboratory processes like distillation and drying, and food and beverage packaging and conveying.
Find your perfect fit below.
Highlights
- Separate Drive: Allows selection of motor technology best suiting the air flow need of the application
- Oil-Free or lubricated Options: Provides maximum versatility for various applications
- Pulse Free: Delivers a smooth, continuous flow of fluid without significant pressure fluctuations or pulsations
- Low Maintenance: Vanes and filters are easily serviceable to extend the life of the product and maximize uptime
- Capabilities: Air flows up to 21 cfm, pressure to 15 psi and vacuum capabilities to 28 in-HG
Specifications
ROTARY VANE AIR COMPRESSOR-VACUUM PUMP
| Item # | Description | Hp | Kw | Open Flow [cfm] [lpm] |
Max Pressure [psi] [Bar] |
Flow @ Max Pressure [cfm] [LPM] |
Max Vacuum [in hg] |
Flow @ Max Vac [CFM] [LPM] |
AMPS [50Hz] [60Hz] [DC] |
Voltage [50Hz] [60Hz] [DC] |
Sound Level [DBA] | Weight [lb] [kg] | Dimensions [in] [mm] |
Regulatory | Coo | Plug Type | Product Series | Mounting Dimensions [in] [mm] | Pressure | Vacuum | Downloads | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

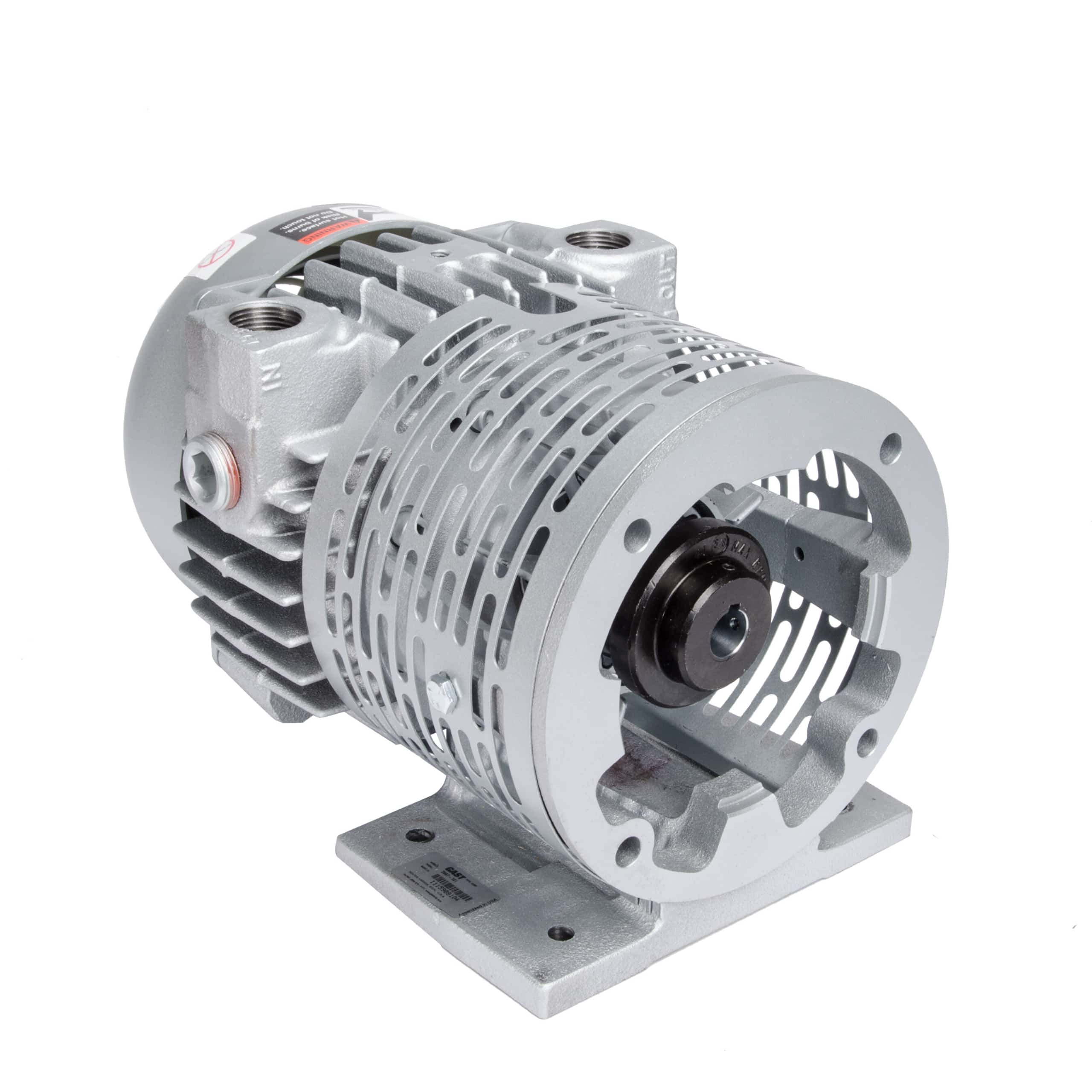

| 2067-V103 | Rotary Vane Pumps (Separate Drive) | 1 | —17— | —481.386143979847— | ——— | ——— | 28 | ——— | ——— | N/AN/AN/A | N/AN/AN/A | 80 | 55 24.94758035 |
11.48 L 17.69 W 13.12 H 291.592 L 449.326 W 333.248 H |
N/A | USA | N/A | ROTARY VANE AIR COMPRESSOR-VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
No | Yes | View | |||

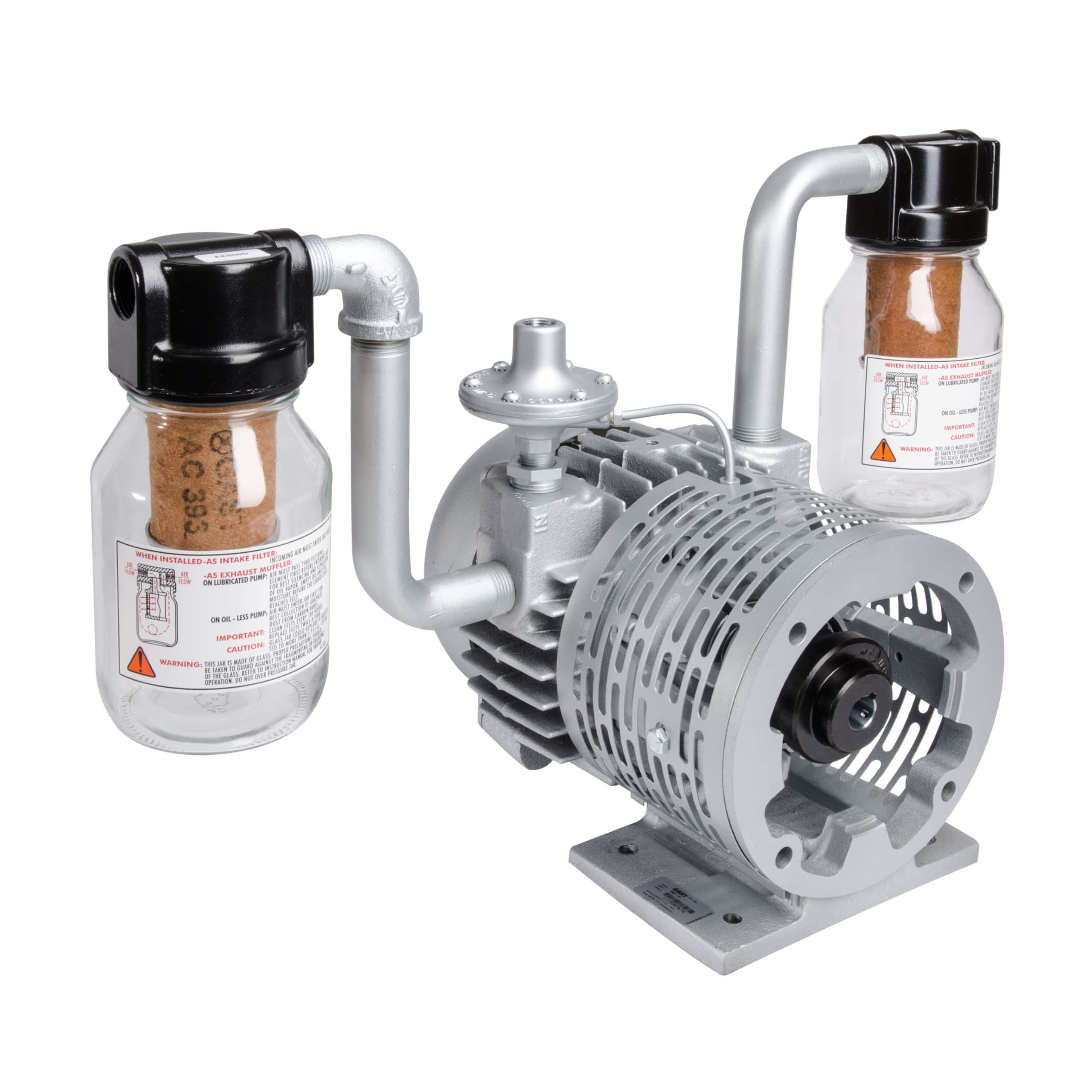

| 2567-V1 | Rotary Vane Pumps (Separate Drive) | 1.5 | —21— | —594.653471975104— | ——— | ——— | 28 | ——— | ——— | N/AN/AN/A | N/AN/AN/A | 78 | 51 23.13321087 |
11.48 L 19.84 W 15.29 H 291.592 L 503.936 W 388.366 H |
CE | USA | N/A | ROTARY VANE AIR COMPRESSOR-VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
No | Yes | View | |||
| 2567-P102 | Rotary Vane Compressors (Separate Drive) | 1.5 | —21— | —594.653471975104— | 1.034214 | 1.034214 | —17— | —481.386143979847— | N/A | N/AN/A— | ——— | N/AN/AN/A | N/AN/AN/A | 78 | 55 24.94758035 |
11.48 L 7.44 W 11.24 H 291.592 L 188.976 W 285.496 H |
CE | USA | N/A | ROTARY VANE AIR COMPRESSOR-VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
Yes | No | View | |
| 2567-V103 | Rotary Vane Pumps (Separate Drive) | 1.5 | —21— | —594.653471975104— | ——— | ——— | 28 | ——— | ——— | N/AN/AN/A | N/AN/AN/A | 78 | 55 24.94758035 |
11.48 L 18 W 13.23 H 291.592 L 457.2 W 336.042 H |
N/A | USA | N/A | ROTARY VANE AIR COMPRESSOR-VACUUM PUMP |
3 L 4.88 W 76.2 L 123.952 W |
No | Yes | View |
